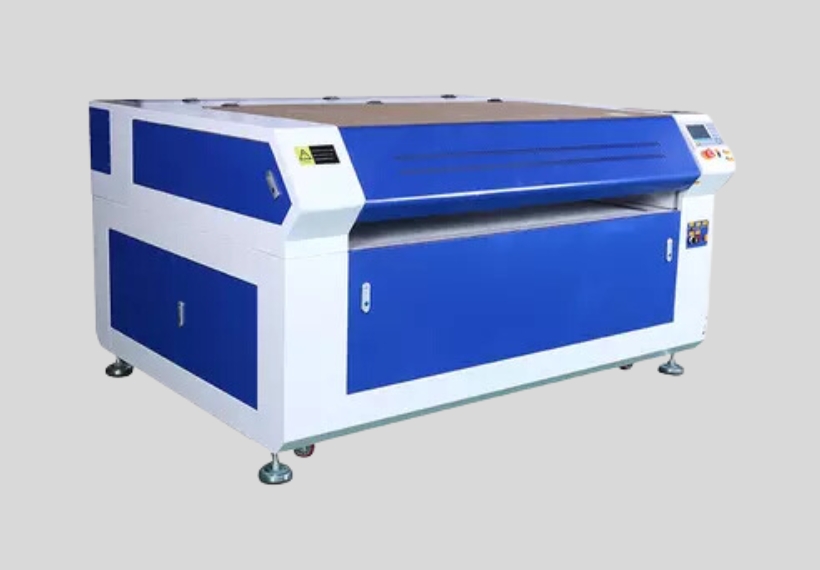

G3- 1060 Laser Engraving&Cutting Machine
Processing area: 1000mm*600mm Powers: 80W 100W 120W Color: Blue-white or grey-white Applicable materials: acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles,bamboo, shellfish, ABS sheet.
Advantages::
1. RUIDA RDC6442 main board.
2. Blue white / grey white color.
3. Taiwan CSK linear guideway.
4. Shenzhen Leadshine driver and motor.
5. Beidi synchronous belt.
6. RDWorks software.
7. Double worktable: Honeycomb and aluminum rod.
8. Hailea ACO-009D air pump.
7. Standard wooden case packaging.
- Model: G3-1060
- Brand: G3
- Code: G3-1060
Technical Parameters:
| Model | G3 1060 |
|---|---|
| Processing Area | 1000*600mm |
| Laser power | 80W, 100W ,120W,150W |
| Cutting speed | 0-10000mm/min |
| Engraving speed | 0-64000mm/min |
| Repeatability | 0.01mm. |
| Graphic format | AI,CDR,BMP, JPG, DST, PLT, DXF, DWG, TIFF, PSD |
| Supported software | Coreldraw, Photoshop, AutoCAD |
| The smallest cutting characters | Character: 2.0*2.0mm English:1.0*1.0mm |
| Operating temperature | 0-45°C. |
| Application material | fabric, acrylic, wood, paper, leather, cloth, plastic, rubber, resin, bamboo, ABS sheet, PVC etc |
